Scheduled checks

The configuration page for recurring probes: what the fleet probes on its own, from where, and how often. Three tabs over three object kinds, and the path through them is always target → definition → schedule.

The three objects, defined:

• A target names a host or URL outside the fleet. Its address is validated against its kind (host takes a hostname or IP, optionally with a port; url takes an http(s):// URL) and is at most 2048 bytes, the bound an ad-hoc address has too, and external checks probe what is listed here. Each target also has its own page at /targets/<id> (the target card), documented with the other object pages.
• A definition says what the fleet probes: a check type, which agents send (the source selection), and where the probes go, whether the nodes themselves, a saved target, or an ad-hoc address.
• A schedule is the cadence that fires a definition: once, at an interval, or continuously on the agents. A definition without a schedule never fires on its own.

This is configuration, not telemetry. Everything here lives in the database, reading needs checks:read / targets:read (granted to the operator and admin roles, deliberately not viewer), and writing needs the corresponding write permission. Without a database the page says where to set one and requests nothing. When the console cannot read its own configuration (GET /api/v1/config failed), it cannot tell whether a database exists, so the page shows that failure instead, with the server's detail: "Could not read the console configuration, so targets, definitions and schedules were not requested: {error}". See Concepts: checks, runs and schedules for how these objects relate to one-off runs.

A tab with nothing in it yet shows a titled slate ("No targets yet", "No check definitions yet", "No schedules yet") that says what the object is, and with the write permission the create button sits inside that slate. Once the list has rows, the button moves above it. While the list is still loading neither shows, so the button does not jump from one place to the other under the pointer.

The definition form

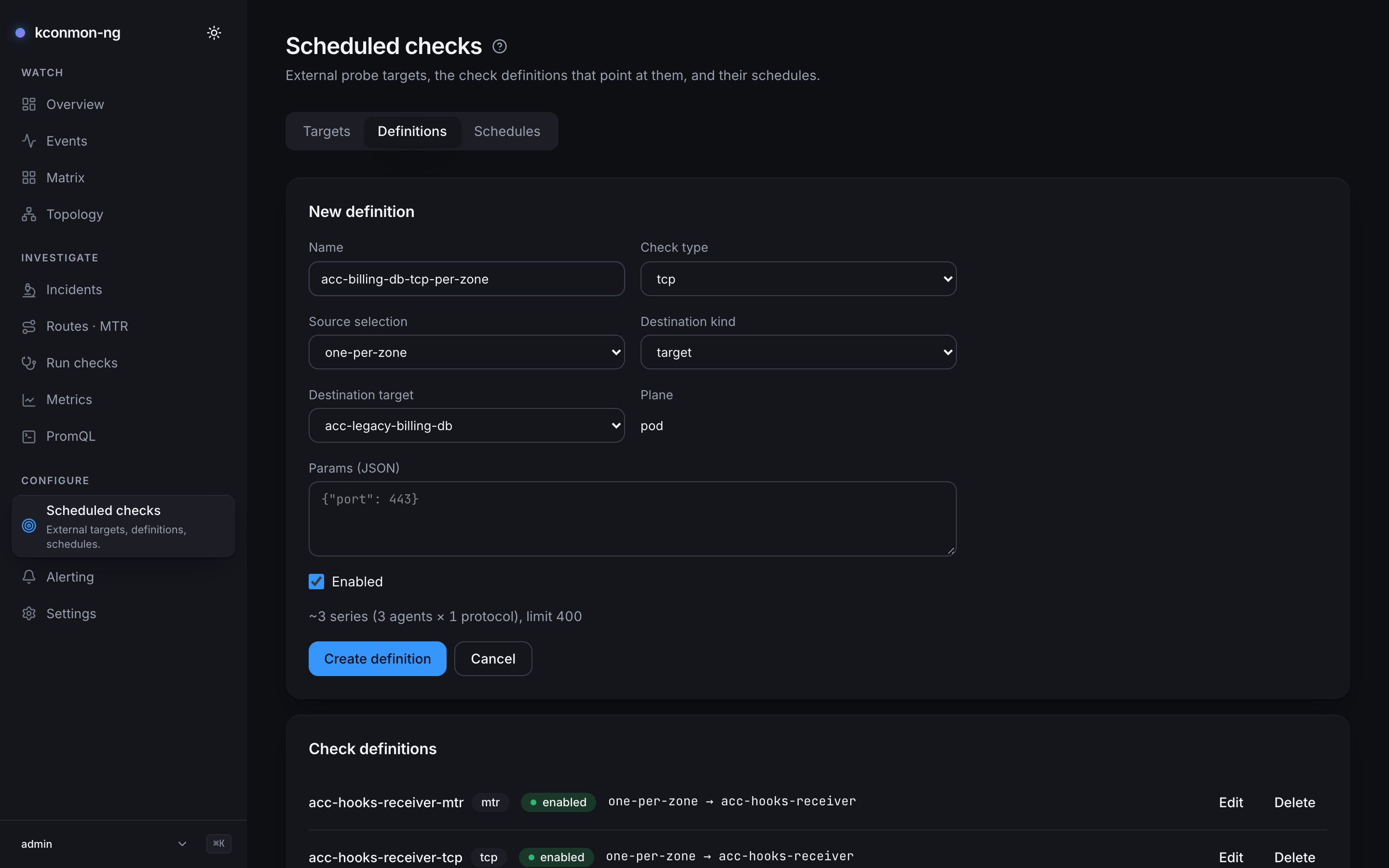

The definition form, open above the list of existing definitions: name, check type, source selection, destination kind and target, the fixed pod plane, params, Enabled, and the projection guard reading "~3 series (3 agents × 1 protocol), limit 400", one agent for each of the stand's three zones.

Fields: Name, Check type, Source selection, Destination kind (node / target / adhoc), Plane, Params (JSON), Enabled. You can also seed one from a filled-in Run checks form via Save as definition.

Source selection decides which agents run the check, and the three values are not three sizes:

Value	Agents that probe	Series cost
all	Every agent	One per agent
per-zone	Every agent, grouped by zone	Same as all; grouping shrinks nothing
one-per-zone	The first agent (sorted by node name) in each zone	One per zone

Only one-per-zone reduces the count, which is why the form defaults to it.

Plane is a fixed field, not a choice: definitions probe from the pod network, and this release ships no second plane, so the form states the scope instead of offering an option. The API refuses any other value: POST and PUT /api/v1/checks answer 422 invalid check definition (definition: plane must be "pod": agents probe the pod network only).

Params (JSON) is interpreted by the agent per check type, and unknown keys are warned about and ignored rather than failing the probe (malformed JSON, on the other hand, gets the whole spec rejected at assignment, and rejections are counted in an agent metric so a definition every agent refuses is visible without reading pod logs). Params over 4096 bytes are refused at save time with 422 (definition: params is N bytes, limit is 4096), since every agent's assignment carries a copy:

Check type	Params
tcp, icmp	None accepted; leave it empty
dns	{"query": "<name to resolve>"}; required, non-empty
http	{"method": "GET"\|"HEAD", "expectStatus": <100–599>, "insecureSkipVerify": <bool>}; all optional, method defaults to GET

Two check types never run toward a target or ad-hoc destination, and the API refuses such a definition at write time. udp probes kconmon nodes only: the probe counts a reply only when the far end echoes its sequence number, which only an agent does, so POST and PUT /api/v1/checks answer 422 check definition cannot run and an import reports it per item. pmtu is refused for any destination kind other than node: it speaks the kconmon echo protocol, which only an agent answers. The form offers neither combination: with Target or Ad-hoc chosen, udp and pmtu are greyed out in Check type, and with either type chosen, Destination kind offers only node and a hint under Check type says why. A udp definition toward a target or ad-hoc address that is already stored can still be paused by unticking Enabled, as the API allows; a pmtu one cannot be saved at all. mtr toward a target or ad-hoc destination saves, but only for once and interval schedules (see below).

The projection guard. Before an enabled definition is saved, the form projects its metric cost against the live topology: "~{series} series ({agents} agents × {protocols} protocols)". Agents is what the source selection resolves to right now; protocols is 1 today, since a definition names exactly one check type. The bound is 400 projected series per definition, the same number that caps one run's fan-out, and a projection above it refuses to save enabled, suggesting one-per-zone or saving disabled. Saving disabled is the deliberate escape hatch, not a loophole. When the server refuses a submit on any of the three forms, focus moves to the refused field, or to the submit button when the refusal names no field. A few refusals never reach the server: a blank name on a target or a definition gets "A name is required.", a schedule with no definition picked gets "Pick a definition to schedule.", and a once schedule with no Run at gets "Pick when the run happens." Because the projection is computed against the live topology, the endpoint answers 503 when console.controller.url is not set, and the same definition can project differently as the cluster scales.

Schedules

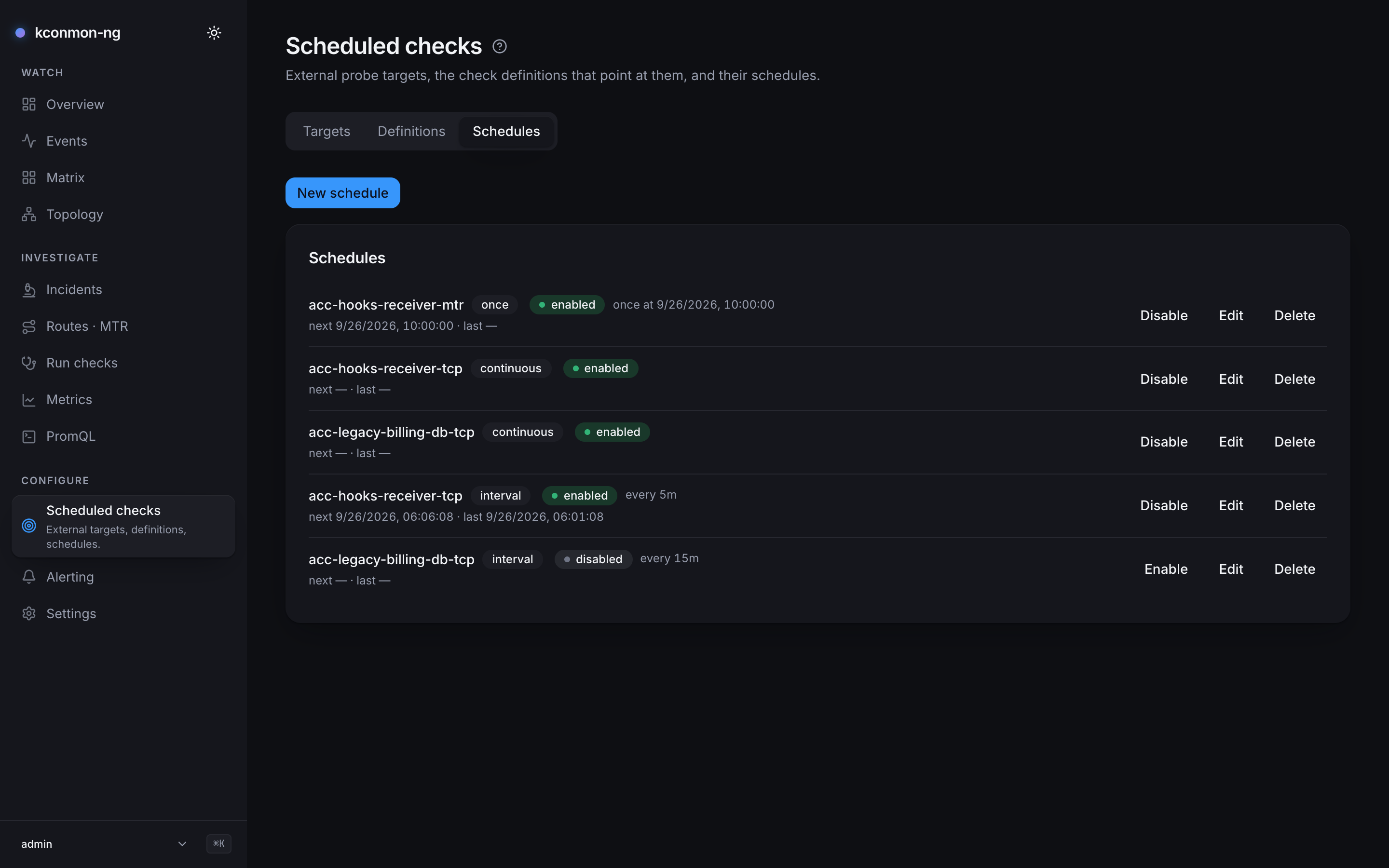

Schedule rows: a once schedule with its next stamp, two continuous schedules, which have neither stamp, an enabled interval schedule with its next and last stamps, and a disabled interval schedule. Every row is a combination the API accepts toward a target: mtr once, tcp continuous and tcp every 5m or 15m.

Three kinds:

• once fires at Run at, which must be in the future.
• interval fires every N seconds. A value below the floor of 10 seconds is clamped up server-side rather than rejected; the form says so in advance.¹
• continuous is pushed to the agents and runs there. No interval, no run-at, and no dependency on the scheduler loop.

A schedule belongs to its definition permanently: to point a cadence at a different definition, create a new schedule. The form states this next to the fixed definition field. Kind offers only the kinds that can run the chosen definition (the table below) and says why the others are missing; a stored udp or pmtu definition toward a target or ad-hoc destination leaves no kind at all, and the form will not save a schedule for it until the definition points at nodes.

Toward a target or ad-hoc destination the kind decides which check types can run, because a continuous schedule becomes an external check on the agents and the other two fire one-off runs:

Kind	Check types toward a target or ad-hoc destination
continuous	tcp, icmp, dns, http
once, interval	tcp, icmp, mtr, the set a one-off run takes

POST /api/v1/schedules and PUT /api/v1/schedules/{id} refuse any other combination with 422 invalid schedule, for example schedule: check type http cannot run toward destination kind "target" as a one-off or repeating run: the agents run only tcp, icmp and mtr checks toward one. A node destination is not judged. PUT /api/v1/checks/{id} refuses an edit of the check type or destination kind that would leave one of the definition's own schedules unable to run it, with 422 check definition cannot run and definition: its interval schedule could not run the edited check: ...; change or delete that schedule first. A schedule of that kind saved before 2.5.0 starts no run: when it comes due its row shows failing with check type http cannot run toward destination kind "target" as a one-off or repeating run: the agents run only tcp, icmp and mtr checks toward one, so no run was started, the API's refusal plus its last clause, with a last stamp. An interval schedule records this at each due time; a once schedule records it once and retires rather than coming due again every minute. A stored definition with a plane other than pod fails its schedules the same way, with the plane refusal as the message. Disable such a schedule from its row, or delete it; a dns or http definition toward a target runs as a continuous schedule instead. With "enabled": false neither PUT /api/v1/schedules/{id} nor PUT /api/v1/checks/{id} applies the runnability check, so a pre-2.5.0 row can always be disabled; enabling it again is judged, and so is every create. A definition edit is still held to its schedules either way.

once and interval schedules are fired by the console scheduler loop, and that loop is off by default (console.scheduler.enabled, tick every 5 s when on; see the Helm values), so that a chart upgrade can never start dispatching fleet traffic by itself.

Schedules that will never fire

With the scheduler loop disabled, the page banners: "These schedules will not fire: the scheduler loop is disabled on this install (console.scheduler.enabled). Continuous schedules are unaffected — they run on the agents."

Each schedule row shows its state (enabled, disabled, or paused: definition disabled) with next {at} / last {at} stamps; a disabled or paused schedule reads next —, since nothing is due. The cadence keeps its own column with its full text as a tooltip, so a long definition name never cuts it short. Paused means the schedule is on but its definition is switched off: nothing fires, the cadence keeps its place, and firing resumes when the definition is re-enabled. When the last fire failed, the row carries the scheduler's own recorded message verbatim ("failing: {message}"), and it stays visible even if the schedule is later disabled, because switching a cadence off does not unmake the failure.

Where the results land

Fired runs appear in run history and their series in Metrics. A target's own card collects everything about that target (the definitions probing it, its probe-duration series, the runs against it) and is documented in Pair, node and target pages.

External destinations additionally require the fleet-side allowlist: checkers.external.enabled and allowedCidrs (see External targets). The whole declarative inventory here, targets, definitions and schedules alike, is exportable from Settings.

---

1. There is also a ceiling of roughly 104 days. The box takes seconds and the wire takes nanoseconds; past that product a JavaScript number can no longer represent the value exactly, and the form refuses to store a cadence nobody asked for. ↩
