Mesh and planes

The probe mesh

Every agent probes every other agent, and every ordered pair is measured separately: node-1 → node-2 and node-2 → node-1 are two different series, because asymmetric failure is common: a firewall rule, a policy, a broken return path each affect one direction. N nodes make N×(N−1) directed pairs.

Probes travel pod-IP to pod-IP, and each protocol has a fixed rendezvous:

Probe	Dials	Port (default)
TCP	the peer agent's HTTP port	the peer's own config.httpPort, 8080
UDP	the peer agent's gRPC/probe port	the peer's own config.grpcPort, 9090
ICMP	the peer's pod IP	none
Path MTU	the peer agent's gRPC/probe port, 64-byte and full-size datagrams with DF set (Path MTU plane)	the peer's own config.grpcPort, 9090

"The peer's own" is literal since 2.4.0: every agent reports its listener ports at registration and the controller hands them out with the peer list, so a peer on non-default ports is dialled where it actually listens. An agent that reports no ports (older than 2.4.0) is dialled on the prober's own configured values, which is why a fleet keeps one port set until every member is on 2.4.0 (External agents).

Keep this table at hand when you write firewall rules, or when you break them on purpose as the demo does: blocking the wrong port silently matches zero packets.

Control plane vs data plane

The two never mix:

• Control plane is the agent ↔ controller gRPC: registration, heartbeats, the peer list pushed on every change, and dispatch of on-demand checks. Losing it degrades coordination only: agents keep probing the last known peer list while the controller is away.
• Data plane is agent ↔ agent probes and each agent's /metrics. Probe results never transit the controller; Prometheus scrapes them straight from the agents. The controller cannot become a throughput bottleneck for measurements, and a controller outage costs you peer-list freshness, not data.

flowchart LR
    C["Controller"]
    A["Agent on node A"]
    B["Agent on node B"]
    P["Prometheus"]

    C -. "control plane:<br/>peer list, heartbeats,<br/>on-demand checks" .-> A
    C -.-> B
    A == "data plane: probes<br/>(pod IP → pod IP)" ==> B
    B ==> A
    P == "data plane: scrape<br/>/metrics :9091" ==> A
    P ==> B

The pod plane, and the traffic it measures

Diagnostic checks carry a lowercase plane field, and today pod is the only value that exists: probes are sent from agent pod to agent pod, so what gets measured is the path pod traffic actually takes through the CNI datapath. That is the layer a CNI bug, a conntrack overflow or a fabric problem lives in, and it is why the tool probes pod IPs rather than node addresses. A workload on hostNetwork talks over node addresses instead, a path these probes do not exercise. No separate host plane shipped with the external agents work: a bare-host agent advertises a host IP because it has no pod network at all, and its probes are still recorded under plane=pod. Read the field as "the addresses the agents advertise", not as a statement about which datapath carried the packets. Any other value is refused up front: the controller's diagnostics endpoint, a Console run and GET /api/v1/matrix?plane= answer 400, a check definition 422, and kubectl kconmon check --plane exits 1.

Host networking

Since 2.4.0 the chart can move the whole agent DaemonSet onto node addresses with agent.hostNetwork: true. Each agent then runs in its node's network namespace, advertises the node IP, and listens on TCP httpPort, UDP grpcPort and TCP metricsPort of the node itself. The option exists for one reason: an external agent on a network that cannot route pod CIDRs can reach node IPs, so this is how external↔cluster cells turn green without BGP or a VPN carrying the pod network.

It changes the subject of measurement, and that is the cost to weigh before flipping it. Every in-cluster pair then probes node IP to node IP over the underlay; the overlay, conntrack and NetworkPolicy enforcement that the pod plane exercises are out of the path, so a CNI bug that breaks pod traffic can sit behind a fully green matrix. Diagnostics and the Console keep reporting plane=pod, unchanged, and a 2.4.0 agent image marks itself kconmon-ng.io/host-network=true in its registration so the API can tell a node address from a pod address. The prerequisites (a privileged namespace, free ports on every node, the ping_group_range sysctl from the node OS, networkPolicy.nodeCidrs when policies are on) are listed with the option in External agents.

The path MTU plane

Since 2.5.0 every agent also asks each peer, once a minute (checkers.pmtu.interval), whether a full-size datagram crosses. The other planes cannot answer that. The TCP probe only dials, the UDP probe sends 4-byte payloads and ICMP sends default-size echoes, so a path that carries small packets and silently drops large ones stays green on all three.

What it sends

One connected UDP socket per peer, Don't Fragment set, aimed at the peer's UDP echo port (the same port the UDP probe uses). Each datagram waits checkers.pmtu.timeout (500ms) for its echo.

1. 64 bytes, up to two tries. If both are lost the pair gets no MTU verdict (unreachable): whether the peer answers at all is the UDP plane's question.
2. The probe size, up to two tries. An echo means ok. An ICMP "fragmentation needed" that names a smaller MTU means reduced, with the router's number: path MTU discovery works on this path, TCP adapts to it, and UDP without its own discovery does not.
3. Bisection when both full-size tries vanish with no ICMP: one datagram per size between 64 bytes and the probe size, at most 16 steps, inside a budget of half the interval.
4. Confirmation before a black hole is reported: the probe size once more, which must vanish again, and the largest size that crossed once more, which must cross again. Only then is the verdict blackhole, with that size as the path MTU.

The confirmation is there because random loss looks like a black hole: two full-size tries lost in a row on a congested path is not rare. A lossy path therefore tends to read unreachable rather than red. Every size above 64 bytes lost, the found size lost on its second send, or the budget spent before anything above 64 bytes crossed all end as unreachable, which writes no result counter; the pair's loss shows on the UDP plane instead. A truncated search that did find a size is still confirmed and reported as a black hole at that size.

A failed path MTU probe triggers no MTR trace: a traceroute walks the path with small packets and cannot show a size problem. External targets are never probed this way, since they run no echo responder; external agents are, because VPNs and WAN links are where this failure is most common.

One direction per series

The echo is 4 bytes whatever size was sent, so A → B answers one question: do A's full-size datagrams reach B. The way back is B's own probe of A, a separate series, which is how a black hole that exists in one direction only shows up as one red cell. The echo contract is the UDP probe's, so a 2.4.x peer answers these datagrams unchanged.

The probe size comes from the route

With checkers.pmtu.size: 0 (the default) the probe size is the MTU of the kernel's route to that peer: the route's mtu attribute when the CNI sets one, never above the egress device's MTU. The lookup asks the FIB for the configured route (RTM_F_FIB_MATCH), so an MTU the kernel learned from an earlier ICMP does not shrink the next probe and hide a reduced path; kernels older than 4.13 ignore that flag.

The route is the right question because some CNIs keep the pod's eth0 at 1500 and put the real limit on the routes. Cilium does exactly that: 1450 with VXLAN, 1405 with native routing plus WireGuard, 1355 with a tunnel plus WireGuard. Sized from the interface, the probe would send 1500-byte datagrams that no pod on the node ever sends and report a black hole the workloads never meet. Under agent.hostNetwork the route leads to the node's egress NIC. Where the route cannot be read, the agent falls back to the MTU of the interface that owns its address and logs one warning. An explicit checkers.pmtu.size is for networks that deliberately run smaller; a value above the route MTU is clamped to it, with one warning per peer.

Why UDP with DF

Two other designs were rejected:

• ICMP echo with DF. The reply comes back at the same size, so a lost echo cannot be pinned to a direction. Many networks filter ICMP apart from data traffic, so its verdict says little about UDP and TCP. And the unprivileged ICMP socket needs the ping_group_range sysctl.
• A large TCP echo. MSS clamping at the network edge shrinks TCP segments to fit, which hides exactly the hole that UDP and QUIC fall into. It would also need a new echo server and a protocol change.

UDP with DF reuses the echo server every agent already runs, needs nothing new on the wire, and tests the direction the datagram travels. The failure it catches, and how to reproduce it, is in Catch an MTU black hole.

Zones and failure domains

At registration the controller reads each agent's node label named by config.failureDomainLabel (default topology.kubernetes.io/zone) and hands the zone back, so every peer metric carries source_zone and destination_zone with no per-agent configuration. This needs controller.leaderElection: true, because the controller starts its node informer only with leader election on. An explicit agent.zone value always wins, and a node with no zone label simply has empty zone labels (the Console's Topology page will say so out loud).

Zones are also a measurement plane of their own: every peer probe is recorded a second time under only (source_zone, destination_zone). Each agent exports its own set per destination zone, so the family grows as N×Z instead of N². Two bundled alert rules, ZoneChecksFailing and ZoneLossHigh, read only that family, and the agent.metrics.detail: zone-only scrape mode keeps only it. See the zone aggregates reference.

Two design choices in the zone alerts answer questions people rightly ask. ZoneLossHigh computes loss from the zone packet counters (sent minus received over sent) rather than averaging the per-pair loss-ratio gauges, because an average would weight an idle pair the same as a busy one and report a number no packet ever experienced. And its default threshold is 0.1 where the per-pair UDPLossHigh uses 0.5, because the zone aggregate dilutes any single link by the pair count: with N node pairs between two zones, one dead link reads about 1/N. That only means "the fabric, not one link" once N is large enough. Below about ten node pairs (up to eight for a UDP-only break) one dead link crosses 0.1 by itself, and ZoneChecksFailing crosses 0.05 below twenty pairs (up to six when only one protocol fails), so both fire next to UDPLossHigh for one pair. On the kind demo stand, zone-a to zone-c is six pairs, and blackholing UDP on one of them put ZoneLossHigh at 13.9% and ZoneChecksFailing at 5.6%. In clusters that small, raise prometheusRule.zoneLossHigh.threshold and prometheusRule.zoneChecksFailing.threshold if you want the zone alerts to page only for the fabric.

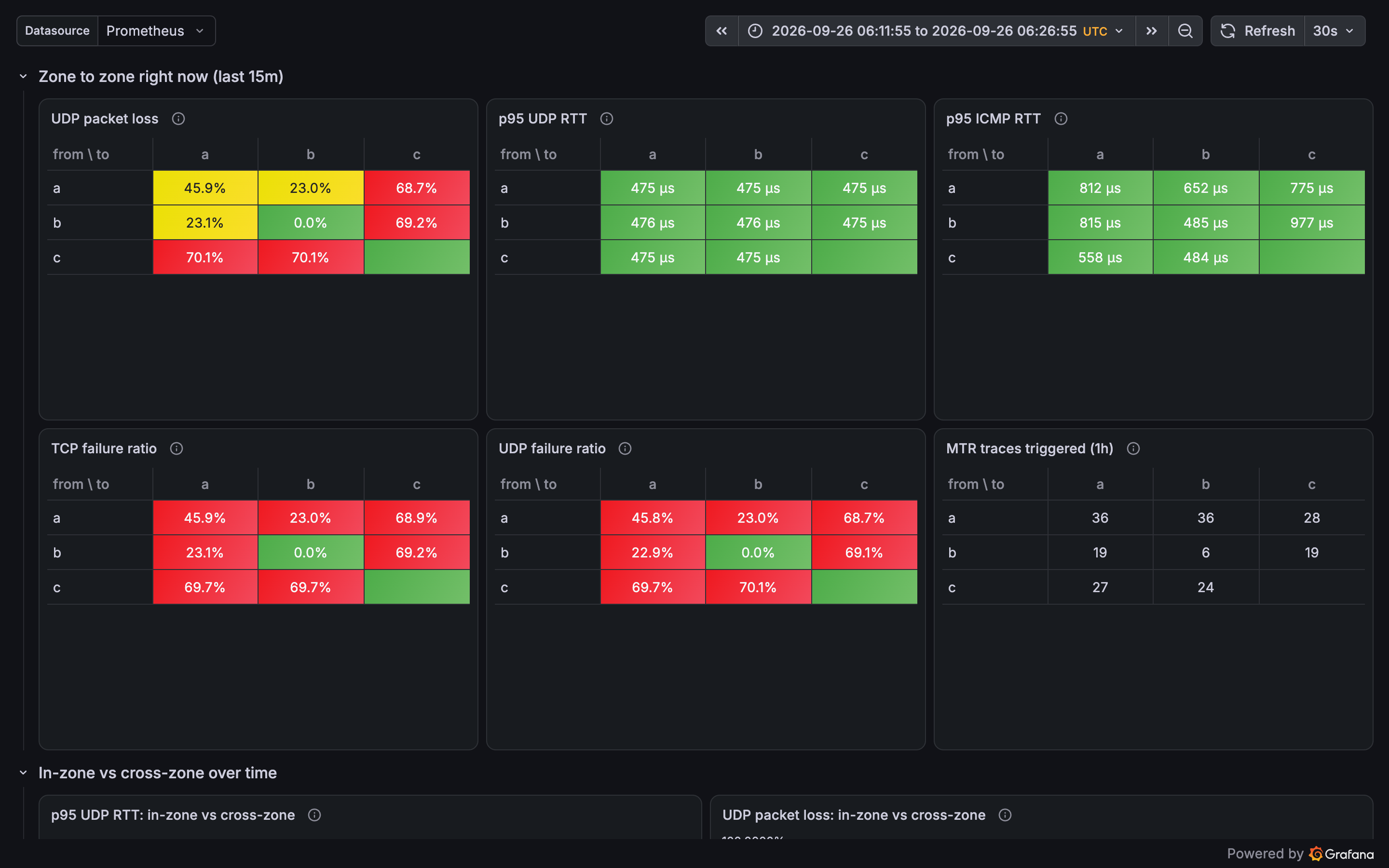

The bundled Zone Heatmap Grafana dashboard reading the kconmon_ng_zone_* family on the kind stand during a staged break, last 15 minutes: zone c is about 69% to 70% as a source and as a destination on UDP loss and both failure ratios, the zone a row sits at about 46% to itself and 23% to zone b, zone b to itself stays at 0.0%, and the c to c cells are empty because zone c has a single node.

Full mesh and its limits

Per-pair, per-protocol measurement is the point of the tool, and it is also the bill. Where the series come from: the four per-pair histograms (TCP connect, TCP total, UDP RTT, ICMP RTT) cost 16 series each on the shared 13-bucket scale (13 buckets plus +Inf, _sum and _count), for 64, plus three loss/jitter gauges, the two path MTU gauges (the size that crossed and the size probed at), the probe_intended plan gauge, and four result counters split by result. That is 78 active series per directed pair, growing quadratically: about 770k series at 100 nodes. The path MTU probe (since 2.5.0) accounts for four of them per pair and one gauge per agent, about 40 thousand series at 100 nodes. 50–100 nodes is the production-proven envelope.

Version skew: the zone family comes from the agent image

Everything zone-flavoured reads the kconmon_ng_zone_* family, and that family is exported by the agent, from v2.3.0 on. A default install is fine, since the chart pins its own appVersion; the trap is a fleet that pins an older agent image behind a newer chart. There the two zone alerts are silently inert (their expressions match no series), the Zone Heatmap renders empty, and flipping agent.metrics.detail: zone-only drops the per-pair series with nothing replacing them: Prometheus goes dark on the mesh while the console keeps working. Upgrade the agent image first, flip the valve second. Details in the v2.3.0 release notes.

The levers that exist today, in one line each:

• agent.metrics.detail: counters-only drops the per-pair histograms (78 → 14 series per pair) while every pair alert keeps firing.
• agent.metrics.detail: zone-only drops per-pair series entirely and keeps the zone plane (N×Z series sets, linear in N), subject to the version-skew warning above.
• Disabling a checker removes its families. A helm upgrade rolls the agents and the families go with the old pods; a hot reload drops the checker's gauges at once, while its counters and histograms stop growing and stay until the agent restarts.

One prerequisite on the first two: the valve renders as metricRelabelings on the agent ServiceMonitor and, since 2.4.0, on the external-agent ScrapeConfig too, so it needs serviceMonitor.enabled or scrapeConfig.externalAgents.enabled, and the chart refuses the valve without either. Running plain Prometheus instead, copy the equivalent metric_relabel_configs from Levers that exist today.

The full arithmetic, what each checker costs and what each mode keeps, is in Scaling and cardinality. A sparse mesh (topology.mode: sparse, since v2.3.0) probes a structured subset of pairs instead of all of them and is the lever for fleets past the full-mesh envelope; even with it, do not plan a 1000-node full mesh.
